Summary of Smart Ladder Control Access Control

Wisdom ladder control access control solution refers to the Internet-based / mobile Internet, Internet of Things technology, combined with automatic control , radio frequency communications technology into all aspects of community property management among ideal life from the security, management, intellectual property as one of the platform.

The smart ladder control solution takes the ladder control access control management system as the core, and unified access to the cloud platform through the Internet technology, and the unified authority management, monitoring and data maintenance of all smart devices through the cloud platform. Reduce the daily repetitive work of property management staff.

2 Smart ladder control access control construction plan

The new type of smart ladder control access control connects various smart devices such as cloud ladder control to the Internet through a network cable, WIFI or4G to connect to the cloud platform to complete the overall installation and deployment of the system, which is convenient for construction, cost-saving, and easy to maintain;

3 function description

The access control system is playing an increasingly important role in the smart community. Community elevators are usually one of the places where accidents happen. Carrying out elevator control access management can not only prevent the casual people from entering the residential area at will, but also prevent children from accidentally riding. The elevator reaches the roof and other dangerous places.

Different from traditional ladder control, smart community ladder control management not only provides methods such as swiping cards, but also provides mobile phone WeChat scan codes. So that users only need to carry a mobile phone to enter and exit the community unimpeded.

The community administrator authorizes the residents in the community to access the elevator parking lot and floors in the background. Only the personnel with the elevator permission can go to the relevant floors and the relevant door permissions in the elevator. Maximize the safety of residents.

3.1 WeChat QR code to take the elevator or open the door

Residents only need to open the mobile phone WeChat and click on the WeChat applet "Microcode Community". After entering the elevator, the screen of the QR code generated by the mobile phone is aligned with the QR code scanning area of the access control or the mobile phone is shaken. After the QR code reader is recognized It will communicate with the elevator control equipment, and send the elevator permission instruction to the elevator controller, which can directly reach the floor where you live or open the relevant door.

3.2 CPU card to take the elevator or open the door

The elderly and children can still take the elevator through the CPU card. The management office writes the ladder control authority into the data sector of the CPU card through the card issuer and performs encryption processing to ensure that it cannot be copied. After entering the elevator, the elderly and children swipe the CPU card to obtain elevator permissions and automatically go to the designated floor. Ensure the safety of the elderly and children.

3.3 Visitors open the door with QR code or take the elevator

When a visitor needs to visit the owner or other residents, the owner generates a temporary visitor QR code through the mobile phone WeChat, and shares the QR code with the visitor. When the visitor enters the elevator or the door, the visitor should aim at the access control or elevator control QR code identification range. Then, the relevant elevator control equipment is issued an instruction to take the elevator temporarily, and the visitor can only go to the floor that needs to be visited, or open the door with the relevant authority. Ensure that strangers cannot enter the private places of residents at will. Ensure the safety of residents.

4 Cloud ladder control

This system is composed of internally selected hierarchical controller, QR code recognizer, and card reader. It has functions such as authorization, time limit, and time limit. The system adopts passive contact connection, offline operation, compact design, and saves installation space.

System network topology diagram

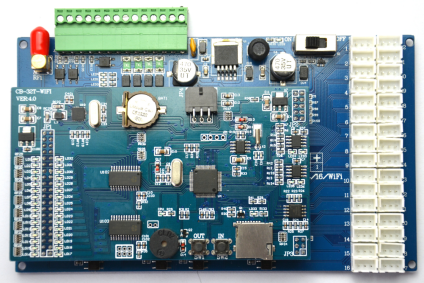

4.1 Internally selected hierarchical controller

Support the number of floors: 16 floors, 24 floors, 32 floors, can be expanded to 48 floors and 64 floors.

Input voltage: DC12V-35V

Input current: less than 200mA

Working temperature: -35- minus degrees Celsius

Mean time between failures: more than 25000 hours

4.3     QR code reader , QR code access control all-in-one machine

Installed on the car selection floor panel or car wall, size: 114*74*21mm
